Global Point Cloud 2D Observation Data Visualization Tool(L2 SWIR)

The tool can display a time-series animation of column amounts for substances such as CO2 and CH4 as point cloud data. It also provides the graph of observed values for specific POI or AOI.

Features

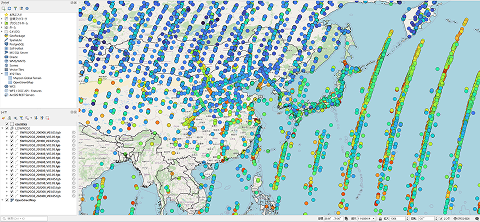

Automatic color coding of GOSAT data to be used

When GOSAT data is downloaded and displayed on a map, it is all displayed in the same color by default in QGIS. Assigning appropriate colors for each scene according to your own observation values will make it easier to see, but it is time-consuming to set up each piece of data individually. This tool enables you to color-code your data in batches.

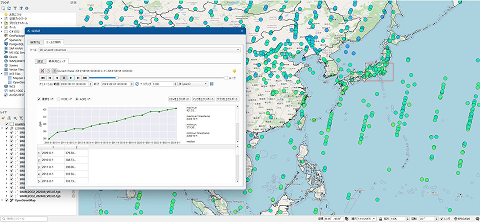

Graphical display of GOSAT time-series data

GOSAT's observed column data for CO2, CH4, water vapor, and other gases can be imported as point cloud data, allowing you to track changes over time.
By displaying data for several years in a time series, you can prepare the graph of long-term changes of column amounts. Specifying a POI or an AOI you can display time-series graphs for the selected location.

Animated display of images in chronological order

Column amount data from multiple selected point clouds can be replayed as an animation on a QGIS map. This enables you to visually grasp the time-series changes in the observed values.

Getting started

QGIS Installation Required

QGIS installation and setup is required. Please refer to the manual for preparation instructions.

GOSAT plugin usage manual (PDF)

Target dataset

GOSAT
- GOSAT/L2/SWIR CO2 column amount(G1-01)
- GOSAT/L2/SWIR CH4 column amount(G1-02)
- GOSAT/L2/SWIR H2O column amount(G1-03)

GOSAT-2
- GOSAT-2/L2/SWIR CO2 column-averaged dry-air mole fraction(G2-01)
- GOSAT-2/L2/SWIR CH4 column-averaged dry-air mole fraction(G2-02)
- GOSAT-2/L2/SWIR CO column-averaged dry-air mole fraction(G2-03)
- GOSAT-2/L2/SWIR H2O column-averaged dry-air mole fraction(G2-04)

*FlatGeobuf file (.fgb) files for each dataset can be downloaded on QGIS.

Sample projects

For those who are unsure of how to search for and download data, we have prepared a sample project with data previously narrowed down by time period and data interval.

Sample period, data interval Components, indicators Dataset Download
2009/08-2024/08
Once per year (Aug.)
CO2 column amount GOSAT/L2/SWIR CO2 column amount(G1-01) Download (Approximately 11.3MiB)
2010/02~2024/02
Once per year (Feb.)
CH4 column amount GOSAT/L2/SWIR CH4 column amount(G1-02) Download (Approximately 8.8MiB)
2009/08-2024/08
Once per year (Aug.)
H2O column amount GOSAT/L2/SWIR H2O column amount(G1-03) Download (Approximately 11.6MiB)
2019/03-2024/01
Once per month
CO2 column-averaged dry-air mole fraction GOSAT-2/L2/SWIR CO2 column-averaged dry-air mole fraction(G2-01) Download (Approximately 68.2MiB)
2019/03-2024/01
Once per month
CH4 column-averaged dry-air mole fraction GOSAT-2/L2/SWIR CH4 column-averaged dry-air mole fraction(G2-02) Download (Approximately 68.2MiB)
2023/01-2023/12
Once per month
CO column-averaged dry-air mole fraction GOSAT-2/L2/SWIR CO column-averaged dry-air mole fraction(G2-03) Download (Approximately 16.7MiB)
2023/01-2023/12
Once per month
H2O column-averaged dry-air mole fraction GOSAT-2/L2/SWIR H2O column-averaged dry-air mole fraction(G2-04) Download (Approximately 16.9MiB)
  • Sample period, data interval
    2009/08-2024/08
    Once per year (Aug.)
    Components, indicators
    CO2 column amount
    Dataset
    GOSAT/L2/SWIR CO2 column amount(G1-01)
  • Sample period, data interval
    2010/02~2024/02
    Once per year (Feb.)
    Components, indicators
    CH4 column amount
    Dataset
    GOSAT/L2/SWIR CH4 column amount(G1-02)
  • Sample period, data interval
    2009/08-2024/08
    Once per year (Aug.)
    Components, indicators
    H2O column amount
    Dataset
    GOSAT/L2/SWIR H2O column amount(G1-03)
  • Sample period, data interval
    2019/03-2024/01
    Once per month
    Components, indicators
    CO2 column-averaged dry-air mole fraction
    Dataset
    GOSAT-2/L2/SWIR CO2 column-averaged dry-air mole fraction(G2-01)
  • Sample period, data interval
    2019/03-2024/01
    Once per month
    Components, indicators
    CH4 column-averaged dry-air mole fraction
    Dataset
    GOSAT-2/L2/SWIR CH4 column-averaged dry-air mole fraction(G2-02)
  • Sample period, data interval
    2023/01-2023/12
    Once per month
    Components, indicators
    CO column-averaged dry-air mole fraction
    Dataset
    GOSAT-2/L2/SWIR CO column-averaged dry-air mole fraction(G2-03)
  • Sample period, data interval
    2023/01-2023/12
    Once per month
    Components, indicators
    H2O column-averaged dry-air mole fraction
    Dataset
    GOSAT-2/L2/SWIR H2O column-averaged dry-air mole fraction(G2-04)

* The sample project is created using data as of March 2025. It may not include the latest data.

Details
Provider Tellus
Terms of use GOSAT Plugin Terms of Service
Notes Please use the data in accordance with the GOSAT/GOSAT-2 Data Policy .
Environment in which tool can be used Available outside of Tellus
User manual, API reference GOSAT plugin usage manual
